CDI IGNITION SYSTEMS

At M&W we specialise in the design and manufacture of high quality (Digital) Capacitor Discharge Ignition systems. The Pro-10 shown below is an example of a single channel unit. Please see list below and go to our technical page for further information.

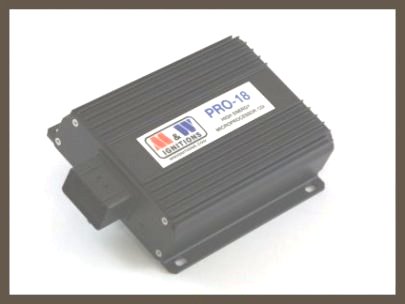

PRO-18 MICROPROCESSOR CDI



The PRO-18 is designed for continuous high rpm competition use. It is available in sequential, Autronic multiplex and Motec IEX inputs.

CAPACITOR DISCHARGE IGNITION SYSTEMS
Model Spark Energy Max speed Description
Pro-10 115/150mJ 1,000Hz Single channel euc/hall triggered cdi with twin spark & Hi power options
Pro-10R 115/150mJ 1,000Hz Single channel reluctor triggered cdi with twin spark & Hi power options
Pro-12 115/150mJ 1,000Hz Two channel ecu/hall triggered cdi with twin spark & Hi power options
Pro-14 115/150mJ 1,000Hz Four channel ecu/hall triggered cdi ignition
Pro-14b 115mJ 1,000Hz Four channel ignition for applications where only two input triggers are available
Pro-14d 115/150mJ 1,200Hz Four channel sequential ignition with Motec IEX input
Pro-14/R 115mJ 10,500 RPM Mazda twin rotor direct fire cdi
Pro-16 115/150mJ 1,200Hz Six channel ecu/hall triggered cdi ignition with Hi power option, may be use on 20B rotary (2 box set)
Pro-16b 115mJ 1,200Hz Six channel ecu/hall triggered cdi ignition (single box)
Pro-16c 115mJ 1,200Hz Six channel Autronic multiplex input cdi ignition
Pro-16d 115mJ 1,200Hz Six channel Motec IEX input cdi ignition
Pro-18 115mJ 1,200Hz Eight channel ecu/hall triggered cdi ignition (single box)
Pro-18c 115mJ 1,200Hz Eight channel Autronic multiplex input cdi ignition
Pro-18d 115mJ 1,200Hz Eight channel Motec IEX input cdi ignition
Pro-Drag2 250mJ 1,000Hz Two channel high energy cdi ideal for high boost & methanol (Drag race use only)
Pro-Drag4 250mJ 1,000Hz Four channel high energy cdi ideal for high boost & methanol (Drag race use only)
Pro-Drag4/R 250mJ 10,500 RPM Mazda twin rotor high energy cdi ideal for high boost & methanol (Drag race use only)
Pro-Drag6 250mJ 1,200Hz Six channel high energy cdi for high boost & methanol (Drag race use use only) 2 box set, may be used on 20B rotary



Note!
4 Cyl RPM = Hz * 30
6 Cyl RPM = Hz * 20
8 Cyl RPM = Hz * 15
